XC6206P332MR

positive voltage regulator, 3.3v, SOT-23, LDO, 0.25A, SMD, low ESR, ceramic capacitor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.50

PartNumber:: XC6206P332MR

Brand:: Torex Semiconductor - TOREX | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-23

From Other Seller

Part Number:XC6206P332MR
US $0.20 - 0.50
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

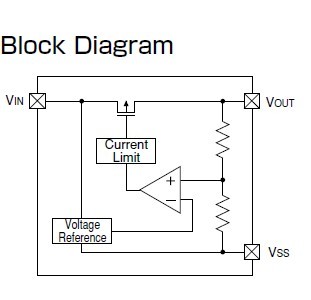

The XC6206P332MR is a highly precise, low power consumption, high voltage, positive voltage regulator manufactured using CMOS and laser trimming technologies. The XC6206P332MR provides large currents with a significantly small dropout voltage. The XC6206P332MR consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. Output voltage can be set internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT 23 (250mW) and SOT-89 (500mW) packages are available.

Parametrics

XC6206P332MR absolute maximum ratings: (1)Maximum Output Current: 250mA; (2)Dropout Voltage: 160mV @ 100mA (5.0V type); (3)Low Power Consumption: TYP 1.0mA; (4)Operating Temperature Range: -400℃ to +805℃; (5)Low ESR Capacitor: Ceramic compatible.

Features

XC6206P332MR features: (1)Dropout Voltage: 0.16V; (2)Input Voltage Max: 6V; (3)Input Voltage Min: 1.8V; (4)Number of Outputs: 1; (5)On/Off CE pin: no; (6)Output Current Max: 250mA; (7)Output Voltage Max: 3.3V; (8)Output Voltage Min: 3.3V; (9)Package: SOT-23; (10)Quiescent Current: 1uA.
