Product Summary
The UMC4NTR is designed as one kind of power management (dual digital transistors). And the structure of this device is epitaxial planar type NPN silicon transistor (built-in resistor type).
Parametrics
UMC4NTR absolute maximum ratings:(1)supply voltage:50V (NPN) or -50V (PNP);(2)input voltage:40V (NPN) or -40V (PNP);(3)output current:30 mA (NPN) or -100 mA (PNP);(4)junction temperature:150;(5)storage temperature:-55 to +150℃;(6)power dissipation (UMC4N):150 mW;(7)power dissipation (FMC4A):300 mW.
Features
UMC4NTR features: (1)Both the DTA114Y chip and DTC144E chip in a UMT or SMT package; (2)Ideal for power switching circuits; (3)Mounting cost and area can be cut in half.

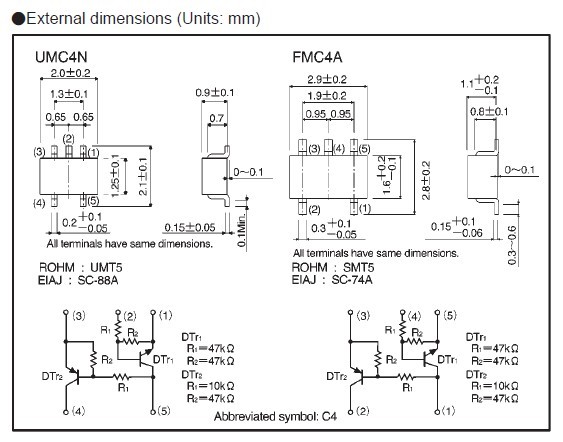

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UMC4NTR |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DUAL DIG SMT PNP/NPN |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
UMC4N |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
UMC4N-7 |
Diodes Inc. |
Transistors Switching (Resistor Biased) 150mW +/-100mA |
Data Sheet |
|
|
||||||||||||
|
UMC4NTR |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DUAL DIG SMT PNP/NPN |
Data Sheet |
|
|
||||||||||||
