Product Summary

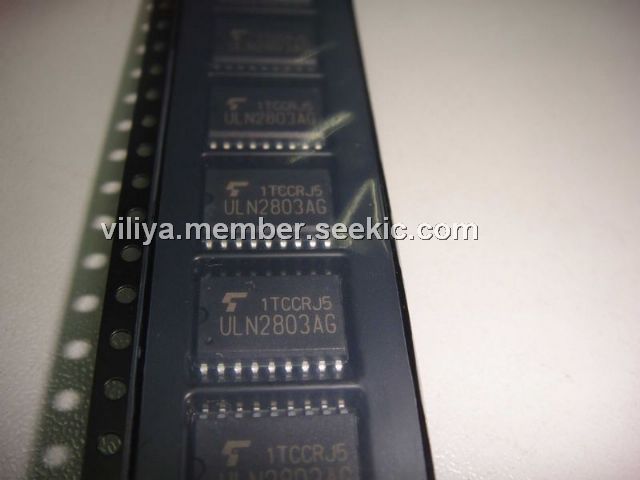

The ULN2803AFWG is a high voltage, high-current darlington driver comprised of eight NPN darlington pairs. The ULN2803AFWG features integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
ULN2803AFWG absolute maximum ratings: (1)Output sustaining voltage, VCE (SUS): -0.5~50 V; (2)Output current, IOUT: 500 mA / ch; (3)Input voltage, VIN: -0.5~30 V; (4)Clamp diode reverse voltage, VR: 50 V; (5)Clamp diode forward current, IF: 500 mA; (6)Power dissipation, PD, APG: 1.47W; AFWG: 0.92 / 1.31W; (7)Operating temperature, Topr: -40~85℃; (8)Storage temperature, Tstg: -55~150℃.
Features
ULN2803AFWG features: (1)Output current (single output) 500 mA (Max.); (2)High sustaining voltage output 50 V (Min.); (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)Package Type-APG : DIP-18pin; (6)Package Type-AFWG : SOL-18pin.

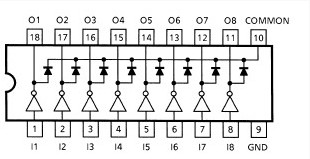

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2803AFWG(5,EL,M |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2803AFWG(5,M) |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2803AFWG(O,EL,M |
Toshiba |
Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85 |
Data Sheet |
|
|
||||||||||||
 |
ULN2803AFWG(C,ELHA |
Toshiba |
Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85 |
Data Sheet |
|
|
||||||||||||
|
ULN2803AFWG(O,M) |
Toshiba |
Transistors Darlington 8-ch 500mA 50V 2.7 kOhm 5V CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
