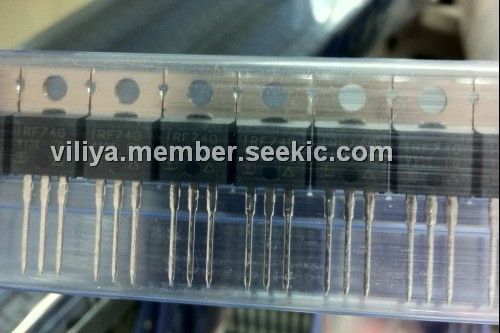

IRF740

400V, Single N-Channel HEXFET Power MOSFET, TO-220AB package, Simple Drive Requirements

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.50

PartNumber:: IRF740

Brand:: Vishay Siliconix - Vishay | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-04

From Other Seller

Part Number:IRF740
US $0.25 - 0.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF740 is a Single N-Channel HEXFET Power MOSFET. The IRF740 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF740 absolute maximum ratings: (1)Drain-Source Voltage:400V; (2)Gate-Source Voltage:±20V; (3)Continuous Drain Current:10A or 6.3A; (4)Pulsed Drain Current:40A; (5)Linear Derating Factor:1.0W/℃; (6)Single Pulse Avalanche Energy:520mJ; (7)Repetitive Avalanche Current:10A; (8)Repetitive Avalanche Energy:13mJ; (9)Maximum Power Dissipation:125W; (10)Peak Diode Recovery dV/dt:4.0V/ns; (11)Operating Junction and Storage Temperature Range:-55 to +150℃; (12)Soldering Recommendations (Peak Temperature):300℃.

Features

IRF740 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Fast Switching; (4)Ease of Paralleling; (5)Simple Drive Requirements; (6)Lead (Pb)-free Available.
