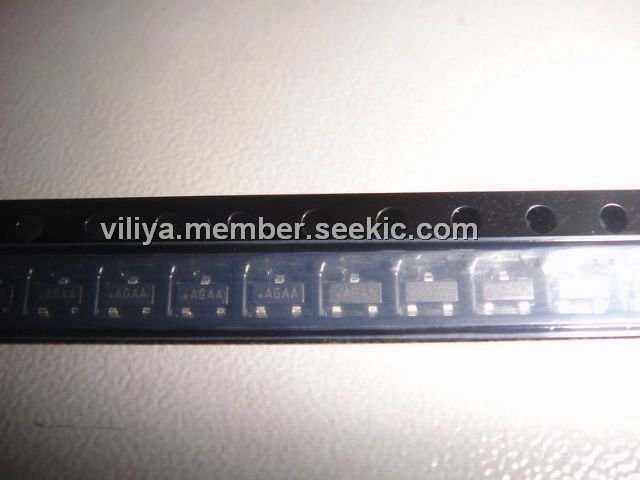

MAX810LEUR

Microprocessor, Reset Circuit, MPU, SOT23-3, 12μA, -0.3V to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.60

PartNumber:: MAX810LEUR

Brand:: Maxim Integrated Products - Maxim | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-29

From Other Seller

Part Number:MAX810LEUR
US $0.50 - 0.60
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX810LEUR is a microprocessor supervisory circuit used to monitor the power supplies in μP and digital systems. The MAX810LEUR provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V powered circuits. It asserts a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltages are available.

Parametrics

MAX810LEUR absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)RESET, RESET (push-pull): -0.3V to (VCC + 0.3V); (3)RESET (open drain): -0.3V to +6.0V; (4)Input Current, VCC: 20mA; (5)Output Current, RESET, RESET: 20mA; (6)Rate of Rise, VCC: 100V/μs; (7)3-Pin SC70 (derate 2.17mW/℃ above +70℃): 174mW; (8)3-Pin SOT23 (derate 4mW/℃ above +70℃): 320mW; (9)Operating Temperature Range, 3-Pin SC70: -40 to +125℃; (10)Operating Temperature Range, 3-Pin SOT23: -40 to +105℃; (11)Storage Temperature Range: -65 to +150℃; (12)Lead Temperature (soldering, 10s): +300℃; (13)Soldering Temperature (reflow): +260℃.

Features

MAX810LEUR features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages; (2)Fully Specified Over Temperature; (3)Available in Three Output Configurations): Push-Pull RESET Output (MAX810); (4)140ms min Power-On Reset Pulse Width; (5)12μA Supply Current; (6)Guaranteed Reset Valid to VCC = +1V; (7)Power Supply Transient Immunity; (8)No External Components; (9)3-Pin SC70 and SOT23 Packages.
