Product Summary

The DTC114EETL is a Digital transistor (built-in resistor).

Parametrics

DTC114EETL absolute maximum ratings: (1)Collector-base voltage: 50 V; (2)Collector-emitter voltage: 50 V; (3)Emitter-base voltage: 5 V; (4)Collector current: 100 mA; (5)Collector power dissipation: 150 mW; (6)Junction temperature: 150 ℃; (7)Storage temperature: -55 to +150 ℃.

Features

DTC114EETL features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

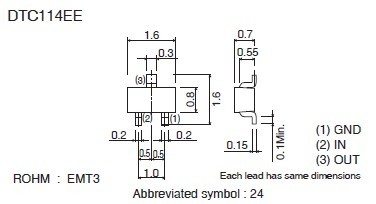

DTC114EETL Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTC114EETL
DTC114EETL
ROHM Semiconductor
Transistors Switching (Resistor Biased) NPN 50V 50MA SOT-416
Data Sheet
0-1: $0.22
1-25: $0.12
25-100: $0.08
100-500: $0.05
