Product Summary

The DTA144EETL is a digital transistor with built-in resistors. It is a PNP epitaxial planar silicon transistor.

Parametrics

DTA144EETL absolute maximum ratings: (1)Supply voltage, VCC: 50V; (2)Input voltage, VIN: 40 to +10V; (3)Output current, IO: -30mA; (4)IC(Max.): -100A; (5)Power dissipation, Pd: 200 mW; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: 55 to +150℃.

Features

DTA144EETL features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input; (3)completely eliminating parasitic effects; (4)Only the on / off conditions need to be set for operation, making the device design easy.

Diagrams

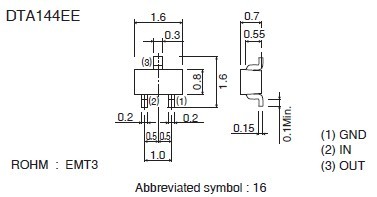

DTA144EETL Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTA144EETL
DTA144EETL
ROHM Semiconductor
Transistors Switching (Resistor Biased) PNP 50V 30MA
Data Sheet
0-1: $0.26
1-10: $0.14
10-100: $0.09
100-500: $0.06
