Product Summary

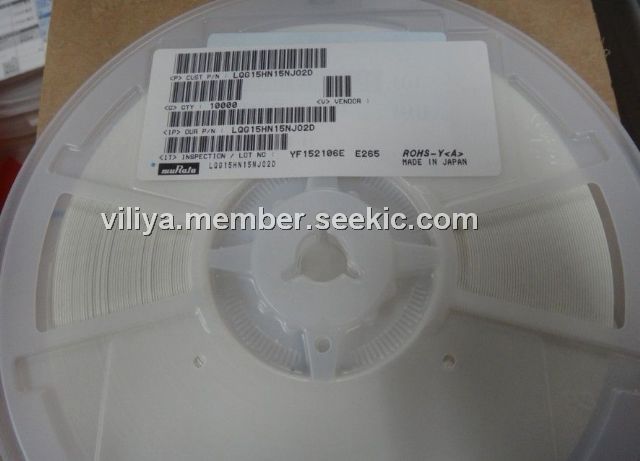

The LQG15HN15NJ02D is a Chip Inductor.

Parametrics

LQG15HN15NJ02D general specifications: (1)Inductance: 15 nH; (2)Tolerance: 5 %; (3)Maximum DC Current: 300 mAmps; (4)Maximum DC Resistance: 0.46 Ohms; (5)Self Resonant Frequency: 2300 MHz; (6)Q Minimum: 8; (7)Operating Temperature Range: - 55℃ to + 125℃; (8)Termination Style: SMD/SMT; (9)Package / Case: 0402 (1005 metric); (10)Core Material: Air; (11)Dimensions: 0.5 mm W x 1 mm L x 0.5 mm H; (12)Packaging: Reel; (13)Series: LQ; (14)Factory Pack Quantity: 10000; (15)Test Frequency: 100 MHz.

Features

LQG15HN15NJ02D features: (1)multilayer type; (2)dimensions:1.0*0.5mm; (3)EIA:0402; (4)multilayer air-core inductor(coil); (5)inductance tolerance:±5%.

Diagrams

LQG15HN15NJ02D package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQG15HN15NJ02D
LQG15HN15NJ02D
Murata
RF Inductors 0402 15nH +/-5% Chip Inductor
Data Sheet
0-1: $0.04
1-50: $0.03
50-100: $0.02
100-500: $0.02
