Product Summary
The C2012X7R1E105KT is a Multilayer Ceramic Chip Capacitor. The applications of it are Decoupling and ripple filters for general electronic devices Time constant circuits, resonance circuits, coupling circuits (Products with CH or C0G temperature characteristics are recommended. Use as a replacement for film capacitors is also possible.)
Parametrics

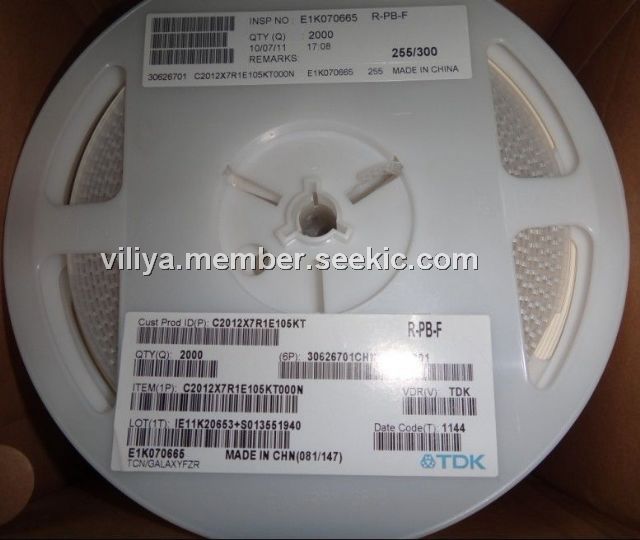

C2012X7R1E105KT general specifications: (1)Capacitance: 1 uF; (2)Tolerance: 10 %; (3)Voltage Rating: 25 Volts; (4)Operating Temperature Range: - 55 to + 125℃; (5)Temperature Coefficient / Code: X7R; (6)Package / Case: 0805 (2012 metric); (7)Product: General Type MLCCs; (8)Packaging: Reel; (9)Dimensions: 1.25 mm W x 2 mm L x 1.25 mm H; (10)Series: C; (11)Factory Pack Quantity: 2000; (12)Termination Style: SMD/SMT.
Features
C2012X7R1E105KT features: (1)An electrostatic capacity has been obtained that reaches the electrolytic capacitor range through precision technology that enables the use of multiple thinner ceramic dielectric layers; (2)Since these capacitors are composed of only ceramics and metals and have a monolithic structure, they offer a long service life and high reliability; (3)Low ESL and excellent frequency characteristics allow for a circuit design that closely conforms to theoretical values; (4)Low self-heating and high ripple resistance due to low ESR.
