Product Summary

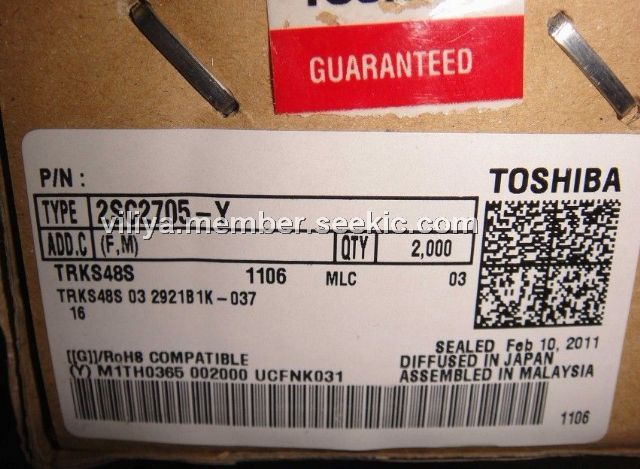

The 2SC2705-Y is a TOSHIBA Transistor. It is a Silicon NPN Epitaxial Type. The device is designed for audio frequency amplifier applications.
Parametrics
2SC2705-Y absolute maximum ratings: (1)Collector-base voltage VCBO: 150 V; (2)Collector-emitter voltage VCEO: 150 V; (3)Emitter-base voltage VEBO: 5 V; (4)Collector current IC: 50 mA; (5)Base current IB: 5 mA; (6)Collector power dissipation PC: 800 mW; (7)Junction temperature Tj: 150 ℃; (8)Storage temperature range Tstg: -55 to 150 ℃.
Features
2SC2705-Y features: (1)Small collector output capacitance: Cob = 1.8 pF (typ.); (2)High transition frequency: fT = 200 MHz (typ.); (3)Complementary to 2SA1145.

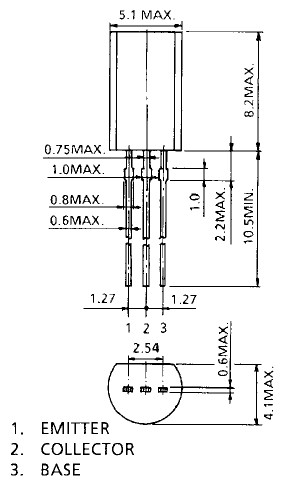

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2705-Y(TE6,F,M) |
|
TRANSISTOR NPN 150V 50MA TO-92 |
Data Sheet |
|
|
||||||
