Product Summary

The A3212EEHLT-T is an ultra-sensitive, pole independent Hall-effect switch with a latched digital output. The A3212EEHLT-T is especially suited for operation in battery-operated, hand-held equipment such as cellular and cordless telephones, pagers, and palmtop computers. A 2.5 volt to 3.5 volt operation and a unique clocking scheme reduce the average operating power requirements to less than 15 μW with a 2.75 volt supply. The A3212EEHLT-T includes on a single silicon chip a Hall-voltage generator, small-signal amplifier, chopper stabilization, a latch, and a MOSFET output.

Parametrics

A3212EEHLT-T absolute maximum ratings: (1)Supply Voltage, VDD: 5 V; (2)Magnetic Flux Density, B: Unlimited; (3)Output Off Voltage, VOUT: 5 V; (4)Output Current, IOUT: 1 mA; (5)Junction Temperature, TJ: +170℃; (6)Operating Temperature, TA Range E-: -40℃ to +85℃; Range L-: -40℃ to +150℃; (7)Storage Temperature Range, TS: -65℃ to +170℃.

Features

A3212EEHLT-T features: (1)Micropower Operation; (2)Operation with North or South Pole; (3)2.5 V to 3.5 V Battery Operation; (4)Chopper Stabilized Superior Temperature Stability Extremely Low Switch-Point Drift Insensitive to Physical Stress; (5)ESD Protected to 5 kV; (6)Solid-State Reliability; (7)Small Size; (8)Easily Manufacturable with Magnet Pole Independence.

Diagrams

A3212EEHLT-T block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

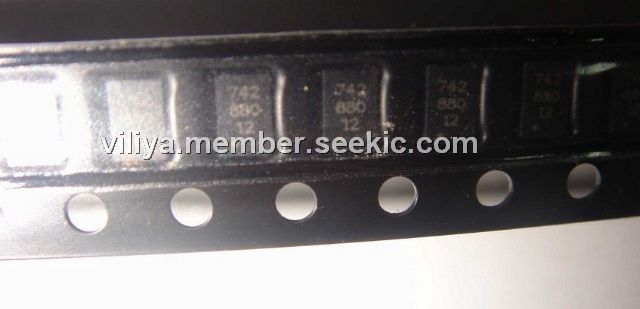

A3212EEHLT-T
A3212EEHLT-T

IC SWITCH HALL EFFECT 2X2MLPD
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A3211
A3211
Other

Data Sheet
Negotiable
A3211EEHLT-T
A3211EEHLT-T

IC SWITCH HALL EFFECT 2X2MLPD
Data Sheet
0-1: $0.57
1-10: $0.50
10-50: $0.46
50-100: $0.40
100-250: $0.35
250-500: $0.31
500-1000: $0.25
A3211EELLT-T
A3211EELLT-T

IC SWITCH HALL EFFECT 2X2MLPD
Data Sheet
0-1: $0.53
1-10: $0.47
10-50: $0.43
50-100: $0.37
100-250: $0.33
250-500: $0.29
500-1000: $0.23
A3211ELHLT-T
A3211ELHLT-T

IC SWITCH HALL EFFECT SOT23W
Data Sheet
0-1: $0.74
1-10: $0.65
10-50: $0.59
50-100: $0.51
100-250: $0.45
250-500: $0.40
500-1000: $0.32
A3211EUA-T
A3211EUA-T

IC SWITCH HALL EFFECT 3-SIP
Data Sheet
Negotiable
A3212
A3212
Other

Data Sheet
Negotiable
