24LC256-IP

CMOS Serial EEPROM, 256KBIT, 400KHZ, 8DIP, 1.8V to 5.5V, 3 mA, Low-power CMOS technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: 24LC256-IP

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:24LC256-IP
US $0.30 - 0.40
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

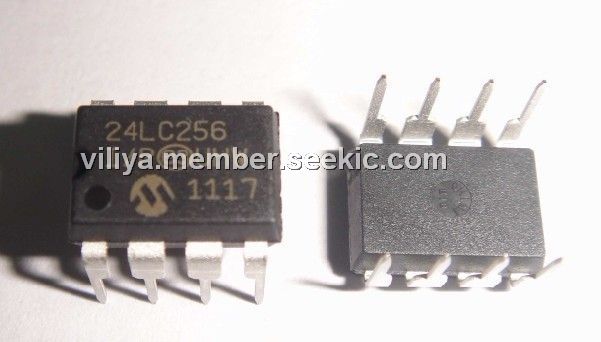

The 24LC256-IP is a CMOS Serial EEPROM. The Microchip Technology Inc 24LC256-I/P is a 32K x 8 (256 Kbit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.7V to 5.5V). The 24LC256-IP has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. The 24LC256-IP is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space. The 24LC256-IP is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP and DFN packages.

Parametrics

24LC256-IP absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temperature with power applied: -40℃ to +125℃; (5)ESD protection on all pins≥ 4 kV.

Features

24LC256-IP features: (1)2-Wire Serial Interface, I2CCompatible; (2)Cascadable up to Eight Devices; (3)Schmitt Trigger Inputs for Noise Suppression; (4)Output Slope Control to Eliminate Ground Bounce; (5)100 kHz and 400 kHz Clock Compatibility; (6)Page Write Time 5 ms max.; (7)Self-Timed Erase/Write Cycle; (8)64-Byte Page Write Buffer; (9)Hardware Write-Protect; (10)ESD Protection >4000V; (11)More than 1 Million Erase/Write Cycles; (12)Data Retention >200 years; (13)Factory Programming Available; (14)Packages Include 8-lead PDIP, SOIC, DFN, TSSOP and MSOP; (15)Pb-Free and RoHS Compliant.
