Product Summary

The CSTCR6M00G53R0 is a Ceramic Resonator. The applications of it are Clock oscillators for microprocessors, Electronic control circuits for small electronic equipment, Audio-visual applications (Camcorder, Remote Controller, etc.), Offce automation equipment (DVD, CD-ROM, HDD, FDD, etc.).

Parametrics

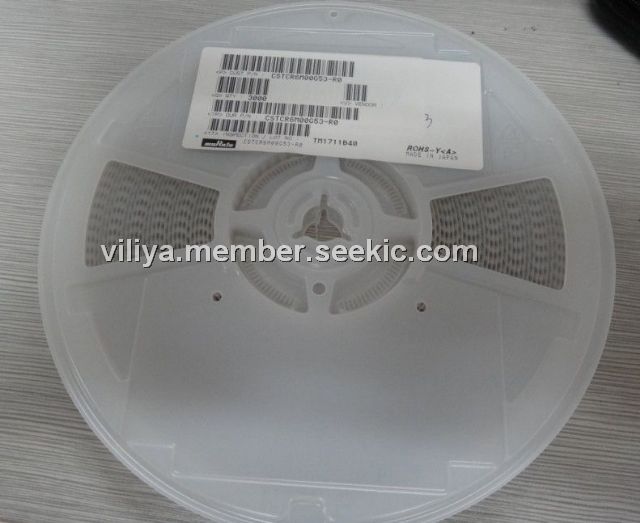

CSTCR6M00G53R0 general specifications: (1)Frequency: 6 MHz; (2)Tolerance: 0.5 %; (3)Series: CSTCR-G; (4)Termination Style: SMD/SMT; (5)Operating Temperature Range: - 20℃ to + 80℃; (6)Dimensions: 2 mm W x 4.5 mm L x 1.5 mm H; (7)Packaging: Reel; (8)Frequency Stability: 0.2 %.

Features

CSTCR6M00G53R0 features: (1)Oscillation circuits do not require external load capacitors; (2)The resonators are extremely small and have a low profle; (3)No adjustment is necessary for oscillation circuits; (4)Temperature range: -20 to +80℃.

Diagrams

CSTCR6M00G53R0 package dimensions
