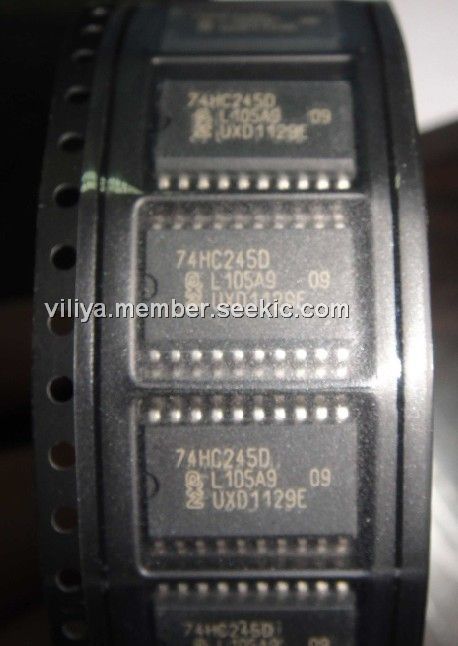

74HC245D

high-speed Si-gate CMOS device, 8BIT, 20SOIC, 3-state, 7A, 2000V, 500mW, ESD protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: 74HC245D

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:74HC245D
US $0.10 - 0.20
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

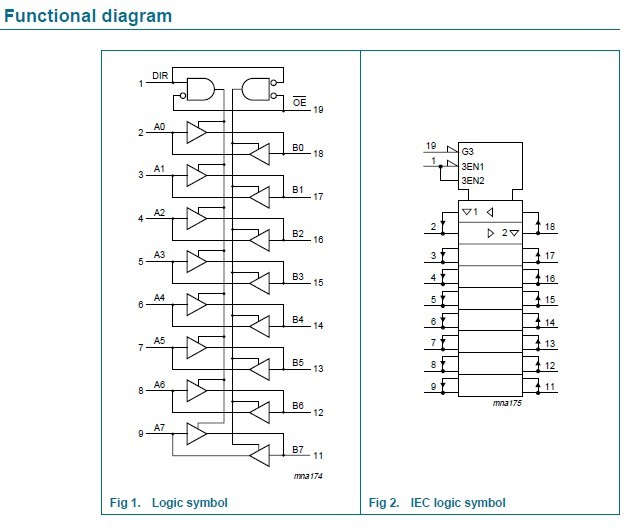

The 74HC245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC245D is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245D features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. The 74HC245D is similar to the 74HC640; 74HCT640 but has true (non-inverting) outputs.

Parametrics

74HC245D absolute maximum ratings: (1)supply voltage, VCC: -0.5 to +7V; (2)input diode current, VI<-0.5V or VI>VCC+0.5V, IIK: ±20mA; (3)output diode current, VO<-0.5V or VO>VCC+0.5V, IOK: ±20mA; (4)output source or sink current, VO = -0.5 V to VCC + 0.5 V, IO: ±35 mA; (5)VCC or GND current, ICC, IGND: ±70 mA; (6)storage temperature, Tstg: -65 to +150℃; (7)total power dissipation, SO20, SSOP20, TSSOP20 and DHVQFN20 packages, Ptot: 500mW.

Features

74HC245D features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000V, MM EIA/JESD22-A115-A exceeds 200V; (6)Specified from -40℃ to +85℃ and from -40℃ to +125℃.
