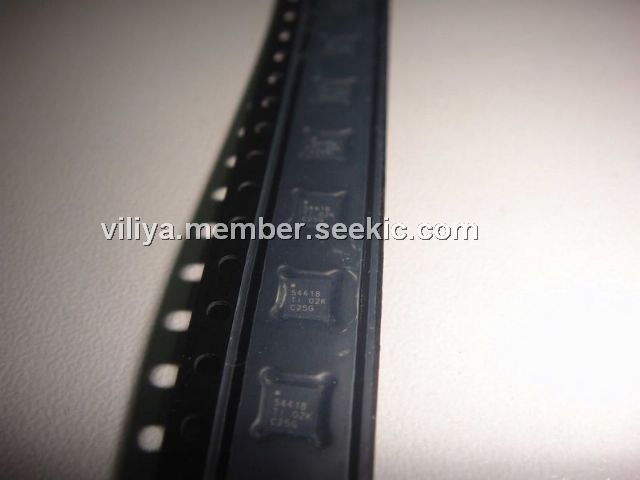

TPS54418RTER

16TQFN, 6 V, 4 A, synchronous step down, current mode, converter

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: TPS54418RTER

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-10

From Other Seller

Part Number:TPS54418RTER
US $1.00 - 1.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

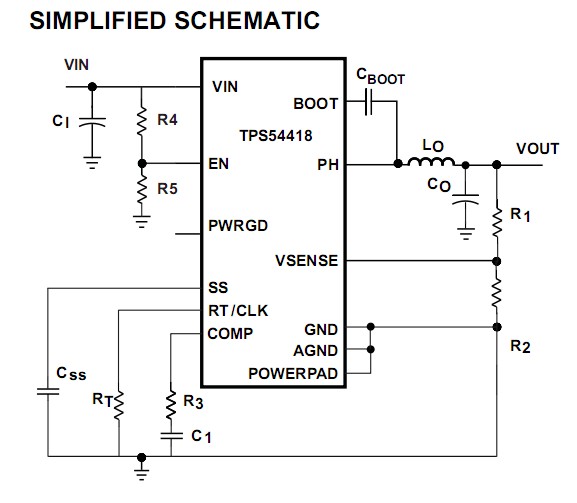

Product Summary

The TPS54418RTER is a full featured 6 V, 4 A, synchronous step down current mode converter with two integrated MOSFETs. The TPS54418RTER enables small designs by integrating the MOSFETs, implementing current mode control to reduce external component count, reducing inductor size by enabling up to 2 MHz switching frequency, and minimizing the IC footprint with a small 3mm x 3mm thermally enhanced QFN package.

Parametrics

TPS54418RTER absolute maximum ratings: (1)VIN: – 0.3 to 7 V; (2)EN: – 0.3 to 7 V; (3)BOOT PH: + 8 V; (4)VSENSE: – 0.3 to 3 V; (5)COMP: – 0.3 to 3 V; (6)PWRGD: – 0.3 to 7pau V; (7)SS: – 0.3 to 3 V; (8)RT/CLK: – 0.3 to 6 V; (9)BOOT-PH: 8 V; (10)PH: – 0.6 to 7 V; (11)PH 10 ns Transient: – 2 to 7 V; (12)EN: 100 μA; (13)RT/CLK: 100μA; (14)COMP: 100μA; (15)PWRGD: 100μA; (16)SS: 100μA; (17)Electrostatic discharge (HBM): 2 kV; (18)Electrostatic discharge (CDM): 500 V; (19)Operating Junction temperature: –40 to 150 ℃; (20)Storage temperature: –65 to 150 ℃.
