Product Summary
The GF1A-E367A is a Surface Mount Glass Passivated Rectifier. It is used in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Parametrics
GF1A-E367A absolute maximum ratings: (1)Device marking code: GA; (2)Maximum repetitive peak reverse voltage VRRM: 50 V; (3)Maximum RMS voltage VRMS: 35 V; (4)Maximum DC blocking voltage VDC: 50 V; (5)Maximum average forward rectified current at TL = 125 ℃ IF(AV): 1.0 A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load IFSM: 30 A; (7)Operating junction and storage temperature range TJ, TSTG: - 65 to + 175 ℃.
Features
GF1A-E367A features: (1)Superectifier structure for high reliability condition; (2)Ideal for automated placement; (3)Low forward voltage drop; (4)Low leakage current; (5)High forward surge capability; (6)Meets environmental standard MIL-S-19500; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃; (8)AEC-Q101 qualified; (9)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

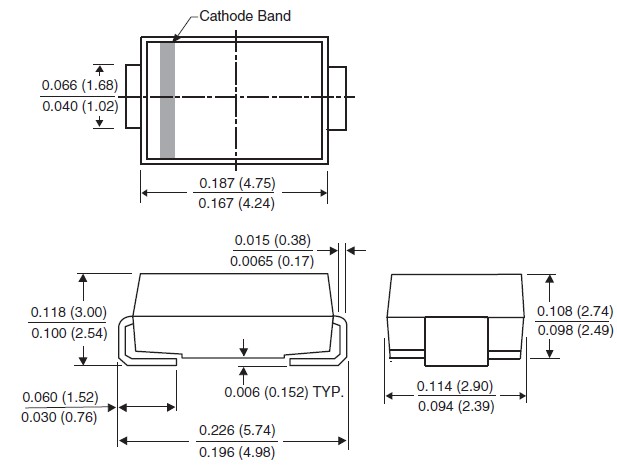

Diagrams
 |
