Product Summary
The BYD77G is an ultra fast low-loss controlled avalanche rectifier. The package of it is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
Parametrics
BYD77G specifications: (1)On the conditions of IF = 1A; Tj = Tj max, VF forward voltage: max=0.83V; (2)On the conditions of IF = 1A, VF forward voltage: max=1.05V; (3)On the conditions of IR = 0.1mA, V(BR)R reverse avalanche breakdown voltage: min=440V; (4)On the conditons of VR = VRRMmax, IR reverse current: max=1μA; On the conditons of VR = VRRMmax, Tj = 165℃, IR reverse current: max=100μA; (5)On the conditons of when switched from IF = 0.5A to IR = 1A; measured at IR = 0.25A, trr reverse recovery time: max=50ns.
Features
BYD77G features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Guaranteed avalanche energy absorption capability; (6)Shipped in 8 mm embossed tape; (7)Smallest surface mount rectifier outline.

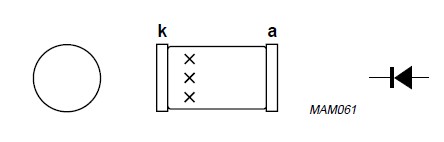

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYD77G |
Other |
|
Data Sheet |
Negotiable |
|
||||
