Product Summary

The BU4S66G2-TR is a 1ch analog switch IC encapsulated in an SSOP5 package, and can replace 1 circuit of the general-purpose CMOS two-way analog switch BU4066B IC.

Parametrics

BU4S66G2-TR absolute maximum ratings: (1)power supply voltage, VDD: VSS-0.3 to VSS+18V; (2)input voltage, Vin: VSS-0.3 to VDD+0.3V; (3)storage temperature, Tstg: -55 to +150℃; (4)power dissiption, Pd: 540mW; (5)supply current, Iin: ±10mA; (6)operating temperature, Topr: -40 to +85℃; (7)maximum junction temperature, Tjmax: 150℃.

Features

BU4S66G2-TR features: (1)Low power consumption; (2)Surface mount package (SSOP5); (3)Broad operating supply voltage range: 3V to 16V; (4)L-TTL2 and LS-TTL1 inputs can be driven directly; (5)Function compatible with BU4066BC series (1ch); (6)Excellent linearity.

Diagrams

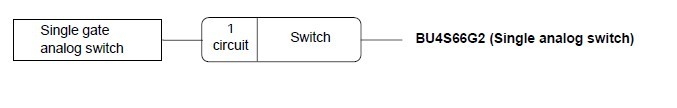

BU4S66G2-TR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BU4S66G2-TR
BU4S66G2-TR
ROHM Semiconductor
Analog Switch ICs SINGLE ANALOG SWITCH
Data Sheet
0-3000: $0.13
