Product Summary

The BAS16 E6327 is a kind of silicon switching diode.

Parametrics

BAS16 E6327 absolute maximum ratings: (1)Diode reverse voltage VR: 80 V; (2)Peak reverse voltage VRM: 85 V; (3)Forward current IF: 250 mA; (4)Non-repetitive peak surge forward current: 4.5 A; (5)Total power dissipation, TS ≤ 54℃: 370 mW; (6)Junction temperature: 150 ℃; (7)Storage temperature Tstg: -65 to 150℃.

Features

BAS16 E6327 features:(1)For high-speed switching applications; (2)Pb-free (RoHS compliant) package1); (3)Qualified according AEC Q101.

Diagrams

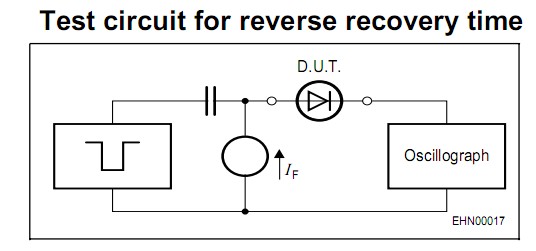

BAS16 E6327 test circuit
