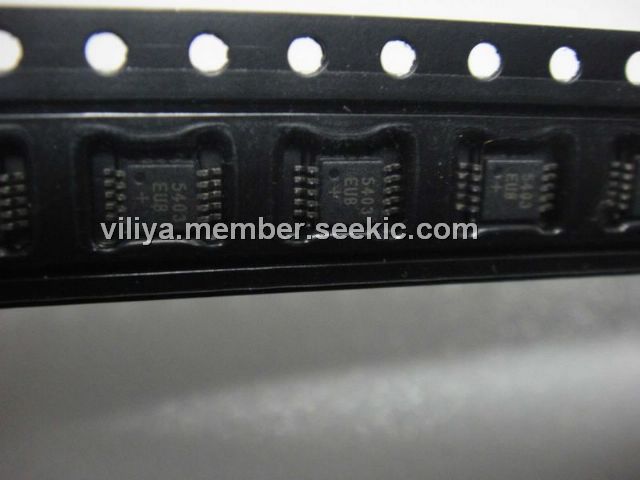

MAX5403EUB+T

256-Tap, Digital Potentiometers, 10μMAX, 10-Pin, 0.1μA , +2.7V to +5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: MAX5403EUB+T

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-29

From Other Seller

Part Number:MAX5403EUB+T
US $1.00 - 1.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX5403EUB+T is a dual 256-tap, low-drift, digital potentiometer in 10μMAX, and it has one 3-terminal potentiometer and one 2-terminal variable resistor. The MAX5403EUB+T operates from +2.7V to +5.5V single-supply voltage and uses an ultra-low supply current of 0.1μA. The MAX5403EUB+T also provides glitchless switching between resistors tap as well as a convenient power-on reset (POR) that sets the wiper to the midscale position at power-up.

Parametrics

MAX5403EUB+T absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)DIN, SCLK, CS: -0.3V to +6V; (3)HX, LX, WX to GND: -0.3V to (VDD + 0.3); (4)Maximum Continuous Current Into HX, LX, and WX: ±1mA; (5)Continuous Power Dissipation (TA = +70℃), 10-Pin μMAX (derate 5.6mW/℃ above +70℃): 444mW; (6)Operating Temperature Range: -40 to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65 to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX5403EUB+T features: (1)10-Pin μMAX Small Footprint Package; (2)256-Tap Positions; (3)Ultra Low 0.1μA Supply Current; (4)+2.7V to +5.5V Single-Supply Operation; (5)Low End-To-End Temperature Coefficient: 35ppm/℃; (6)Low Ratiometric Temperature Coefficient: 5ppm/℃; (7)Power-On Reset: Wiper Goes to Midscale(Position 128); (8)Glitchless Switching Between Resistor Taps; (9)3-Wire SPI? -Interface Compatible; (10)10kΩ/50kΩ/100kΩ Resistor Values.
