ADG506AKNZ

28DIP, CMOS monolithic analog multiplexer , 16 channels, dual 8 channels, 44 V, 20 pA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~5.00

PartNumber:: ADG506AKNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-29

From Other Seller

Part Number:ADG506AKNZ
US $4.00 - 5.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

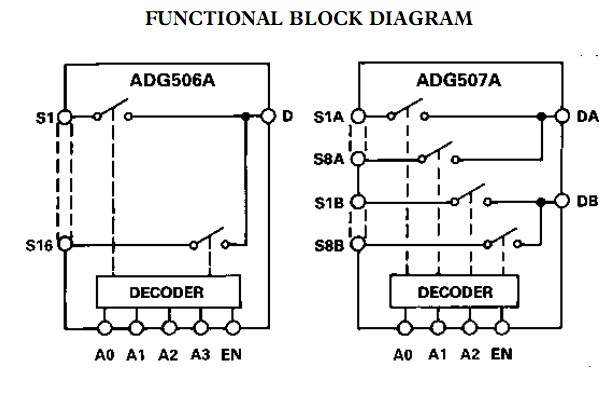

The ADG506AKNZ is a CMOS monolithic analog multiplexer with 16 channels and dual 8 channels, respectively. It switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. It has TTL and 5V CMOS logic compatible digital input.

Parametrics

ADG506AKNZ absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: 25V; (3)VSS to GND: -25V; (4)Analog Inputs2 Voltage at S, D: VSS-2V to VDD + 2V or 20mA, Whichever Occurs First; (5)Continuous Current, S or D: 20mA; (6)Pulsed Current S or D 1 ms Duration, 10% Duty Cycle: 40mA; (7)Digital Inputs2 Voltage at A, EN: VSS-4V to VDD + 4V or 20mA, Whichever Occurs First; (8)Power Dissipation (Any Package)Up to +75℃: 470mW; Derates above +75℃ by: 6mW/℃; (9)Operating Temperature Commercial (K Version):-40℃ to +85℃; Industrial (B Version): -40℃ to +85℃; Extended (T Version): -55℃ to +125℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (Soldering, 10 secs: +300℃.

Features

ADG506AKNZ features: (1)44 V Supply Maximum Rating; (2)VSS to VDD Analog Signal Range; (3)Single/Dual Supply Specifications; (4)Wide Supply Ranges (10.8 V to 16.5 V); (5)Extended Plastic Temperature Range(–40 to +85℃); (6)Low Power Dissipation (28 mW max); (7)Low Leakage (20 pA typ); (8)Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages; (9)Superior Alternative to: DG506A, Hl-506, DG507A, Hl-507.
