Product Summary
The 2SD1664T100R is one member of the 2SD1664 family which is designed as the medium power transistor (32V, 1A).
Parametrics
2SD1664T100R absolute maximum ratings: (1)collector-base voltage: 40 V;(2)collector-emitter voltage: 32 V;(3)emitter-base voltage: 5 V;(4)collector current: 1 or 2 A;(5)junction temperature: 150 ;(6)storage temperature: -55 to +150 ;(7)Collector power dissipation: 0.5 or 2 W.
Features
2SD1664T100R features: (1)Low VCE(sat). VCE(sat) = 0.15 V(Typ.) (IC / IB= 0.5 A / 50 mA); (2)High VCEO, VCEO=80V; (3)Complements the 2SB1132. And the structure of this device is Epitaxial planar type and NPN silicon transistor.

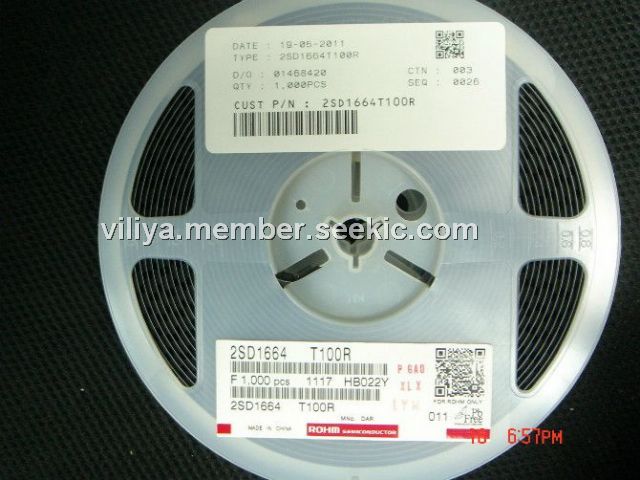

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD1664T100R |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN 32V 1A |
Data Sheet |
|
|
||||||||||||||
