Product Summary

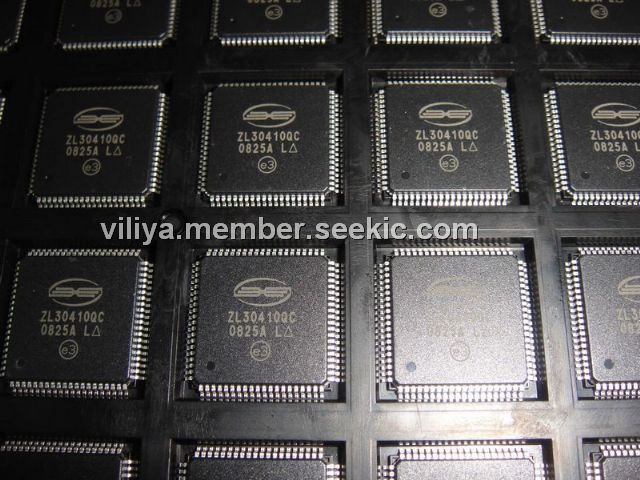

The ZL30410QC is a Multi-service Line Card Phase-Locked Loop designed to generate multiple clocks for SONET, SDH and PDH equipment including timing for ST-BUS and GCI interfaces. The ZL30410QC operates in NORMAL (LOCKED), HOLDOVER and FREE-RUN modes to ensure that in the presence of jitter and interruptions to the reference signals, the generated clocks meet international standards. The applications of the ZL30410QC include: Line Card synchronization for SDH, SONET, DS3, E3, J2 (DS2), E1 and DS1 interfaces, Timing card synchronization for SDH and PDH Network Elements, Clock generation for ST-BUS and GCI timing.
Parametrics
ZL30410QC absolute maximum ratings: (1)Supply voltage VDDR: -0.3 to 7.0 V; (2)Voltage on any pin VPIN: -0.3 to VDD+0.3 V; (3)Current on any pin IPIN: 30 mA; (4)Storage temperature TST: -55 to 125 ℃; (5)Package power dissipation (80 pin LQFP) PPD: 1000 mW; (6)ESD rating VESD: 1500 V.
Features
ZL30410QC features: (1)Generates clocks for OC-3, STM-1, DS3, E3, DS2, DS1, E1, 19.44 MHz and ST-BUS; (2)Meets jitter generation requirements for STM-1, OC-3, DS3, E3, J2 (DS2), E1 and DS1 interfaces; (3)Compatible with GR-253-CORE SONET stratum 3 and G.813 SEC timing compliant clocks; (4)Provides hit-less reference switching; (5)Detects frequency of both reference clocks and synchronizes to any combination of 8 kHz, 1.544 MHz, 2.048 MHz and 19.44 MHz reference frequencies; (6)Continuously monitors both references for frequency accuracy exceeding ±12 ppm; (7)Holdover accuracy of 70x10 -12 meets GR-1244 Stratum 3E and ITU-T G.812 requirements; (8)Meets requirements of G.813 Option 1 for SDH Equipment Clocks (SEC) and GR-1244 for Stratum 4E and Stratum 4 Clocks; (9)3.3V power supply.

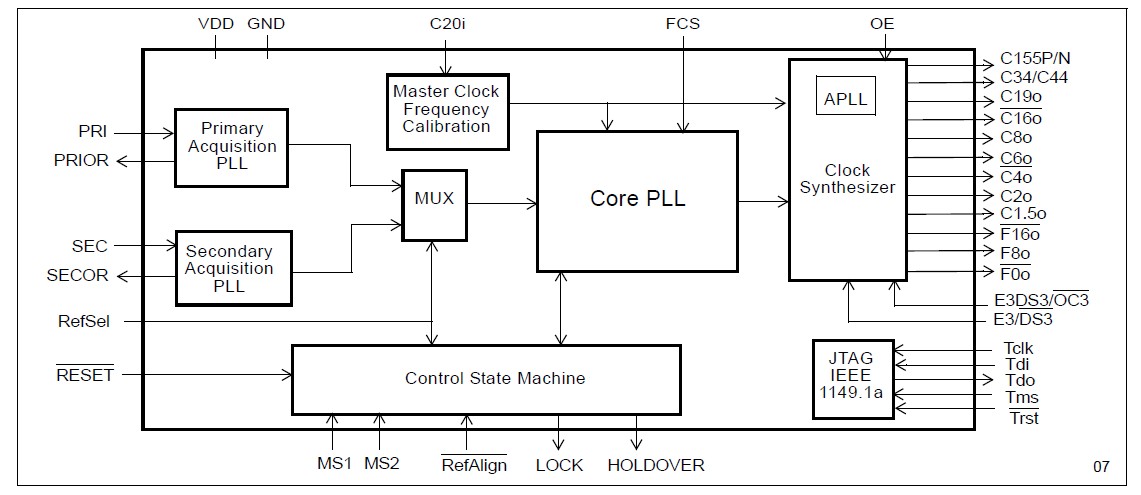

Diagrams
 |
