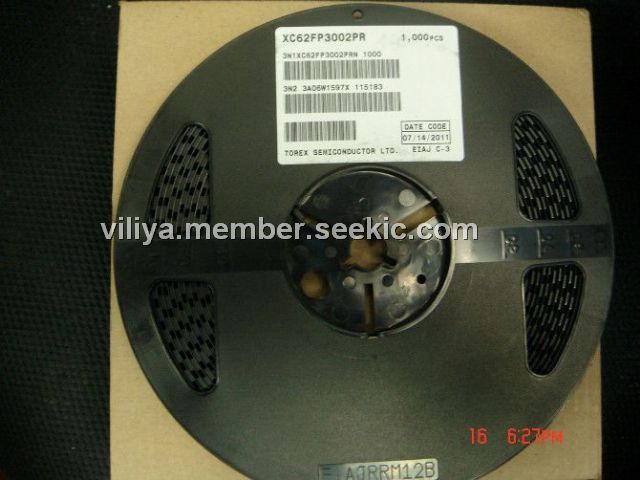

XC62FP3002PR

three-pin, Positive Voltage Regulator, LDO, +3.0V, SMD, SOT-89-3, 500mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.50

PartNumber:: XC62FP3002PR

Brand:: Torex Semiconductor - TOREX | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-23

From Other Seller

Part Number:XC62FP3002PR
US $0.20 - 0.50
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC62FP3002PR is a positive voltage output, three-pin regulator, that provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The XC62FP3002PR consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT-89 (500mW) package is available.

Parametrics

XC62FP3002PR absolute maximum ratings: (1)Maximum Output Current: 250mA; (2)Output Voltage Range: 2.0V to 6.0V in 0.1V increments; (3)Highly Accurate: Output voltage ±2%; (4)Low Power Consumption: Typ. 2.0μA @ VOUT=5.0V; (5)Output Voltage Temperature Characteristics: Typ. ±100ppm/℃; (6)Input Stability : Typ. 0.2%/V; (7)Small Input-Output Differential: IOUT = 100mA @ VOUT = 5.0V with a 0.12V differential; (8)Ultra Small Packages: SOT-89 (500mW) mini-power mold.

Features

XC62FP3002PR features: (1)CMOS Low Power Consumption; (2)Small Input-Output Voltage Differential: 0.12V @ 100mA, 0.38V @ 200mA; (3)Maximum Output Current : 250mA (VOUT=5.0V); (4)Output Voltage Range : 2.0V to 6.0V; (5)Highly Accurate : ±2% (±1%).
