Product Summary
The UPC3232TB-E3-A is a silicon germanium (SiGe) monolithic integrated circuit designed as IF amplifier for DBS tuners. The UPC3232TB-E3-A is manufactured using our 50 GHz fmax UHS2 (Ultra High Speed Process) SiGe bipolar process. It is used in IF amplifiers in LNB for DBS converters etc.
Parametrics
UPC3232TB-E3-A absolute maximum ratings: (1)Supply Voltage VCC: 6.0V; (2)Total Circuit Current ICC: 45mA; (3)Power Dissipation PD: 270mW; (4)Operating Ambient Temperature TA: -40 to +85℃; (5)Storage Temperature Tstg: -55 to +150℃; (6)Input Power Pin: 0dBm.
Features
UPC3232TB-E3-A features: (1)Low current: ICC = 26.0 mA TYP.; (2)Medium output power: PO (sat) = +15.5 dBm TYP. @ f = 1.0 GHz; PO (sat) = +12.0 dBm TYP. @ f = 2.2 GHz; (3)High linearity: PO (1 dB) = +11.0 dBm TYP. @ f = 1.0 GHz; PO (1 dB) = +8.5 dBm TYP. @ f = 2.2 GHz; (4)Power gain: GP = 32.8 dB MIN. @ f = 1.0 GHz; GP = 33.5 dB MIN. @ f = 2.2 GHz; (5)Gain flatness: △GP = 1.0 dB TYP. @ f = 1.0 to 2.2 GHz; (6)Noise figure: NF = 4 dB TYP. @ f = 1.0 GHz; NF = 4.1 dB TYP. @ f = 2.2 GHz; (7)Supply voltage: VCC = 4.5 to 5.5 V; (8)Port impedance: input/output 50.

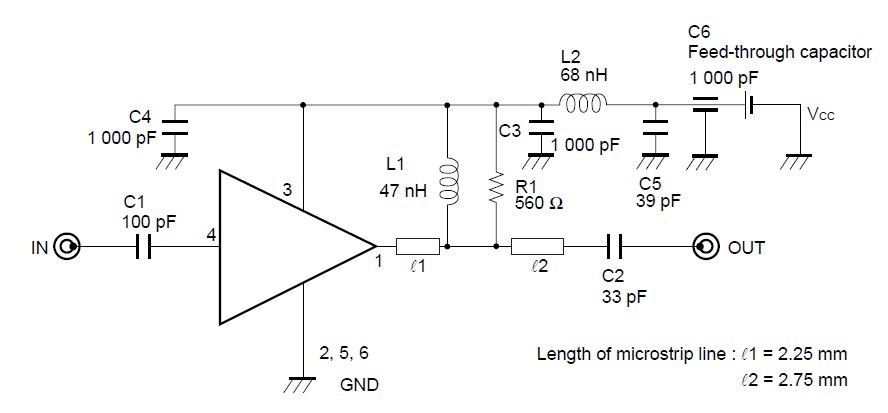

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UPC3232TB-E3-A |
CEL |
RF Amplifier Silicon MMIC Wideband Amp |
Data Sheet |
|
|
||||||||||||
