Product Summary

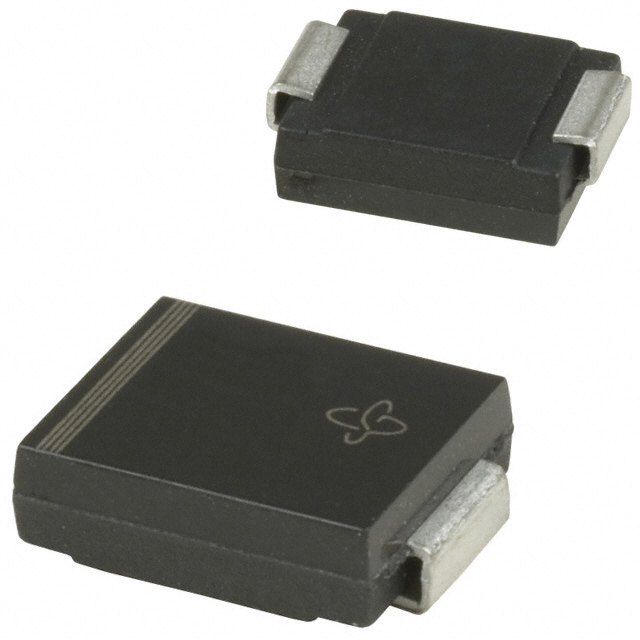

The 3KASMC36A is a Surface Mount Automotive Transient Voltage Suppressor. The 3KASMC36A is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
Parametrics
3KASMC36A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform PPPM: Minimum 3000 W; (2)Peak forward surge current 8.3 ms single half sine-wave IFSM: 200 A; (3)Power dissipation on infinite heatsink at TL = 75 ℃ PD: 6.0 W; (4)Maximum instantaneous forward voltage at 100 A VF: 3.5 V; (5)Operating junction and storage temperature range TJ, TSTG: - 65 to + 185 ℃.
Features
3KASMC36A features: (1)Patented PAR construction; (2)Available in Unidirectional polarity only; (3)3000 W peak pulse power capability with a 10/1000 μs waveform; (4)Excellent clamping capability; (5)Very fast response time; (6)Low incremental surge resistance; (7)Typical ID less than 1.0 μA above 13 V rating; (8)Meets MSL level 1, per J-STD-020C, LF max peak of 260 ℃; (9)Solder Dip 260℃, 40 seconds; (10)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

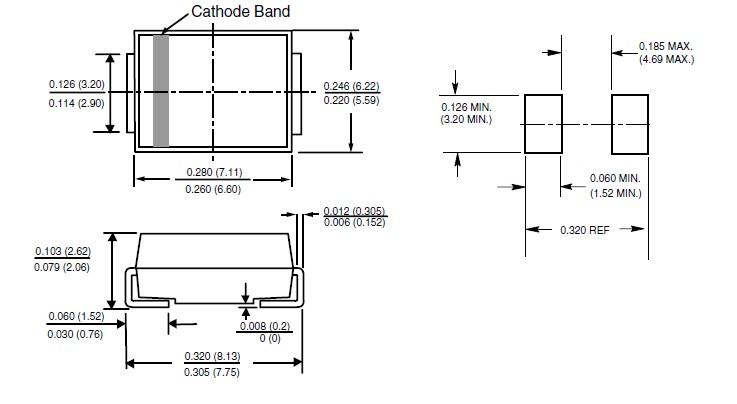

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3KASMC36A-E3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 3.0KW 36V Unidirect |
Data Sheet |
|
|
||||||||||||
|
3KASMC36A-E3/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 3000W 36V 5% Unidir |
Data Sheet |
|
|
||||||||||||
 |
3KASMC36AHE3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 3.0KW 36V Unidirect |
Data Sheet |
|
|
||||||||||||
 |
3KASMC36AHE3/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 3000W 36V 5% Unidir |
Data Sheet |
|
|
||||||||||||
