Product Summary

The M25P80-VMW6G is an 8 Mbit, low voltage, serial Flash memory with 75 MHz SPI bus interface. The memory is organized as 16 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 4096 pages, or 1,048,576 bytes.

Parametrics

M25P80-VMW6G absolute maximum ratings: (1)Storage temperature: –65 to 150 ℃; (2)Input and output voltage (with respect to ground): –0.6 to VCC + 0.6 V; (3)Supply voltage: –0.6 to 4.0 V; (4)Electrostatic discharge voltage (Human Body model): –2000 to 2000 V.

Features

M25P80-VMW6G features: (1)SPI bus compatible serial interface; (2)75 MHz Clock rate (maximum); (3)2.7 V to 3.6 V single supply voltage; (4)8 Mbit of Flash memory; (5)Page Program (up to 256 bytes) in 0.64 ms (typical); (6)Sector Erase (512 Kbit) in 0.6 s (typical); (7)Bulk Erase (8 Mbit) in 8 s (typical); (8)Hardware Write protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2); (9)Deep Power-down mode 1 μA (typical); (10)Electronic signatures; (11)More than 100 000 Program/Erase cycles per sector; (12)More than 20 years data retention; (13)Packages– RoHS compliant; (14)Automotive Certified Parts Available.

Diagrams

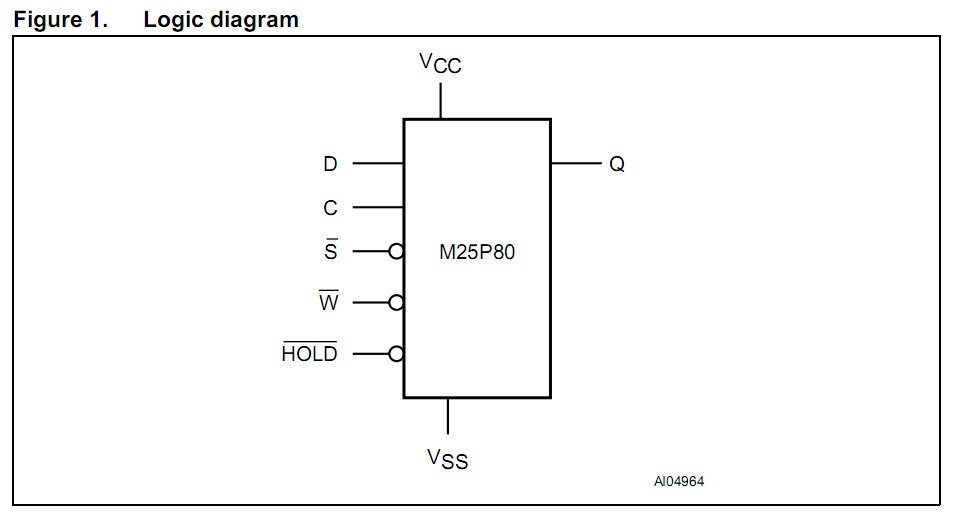

M25P80-VMW6G logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

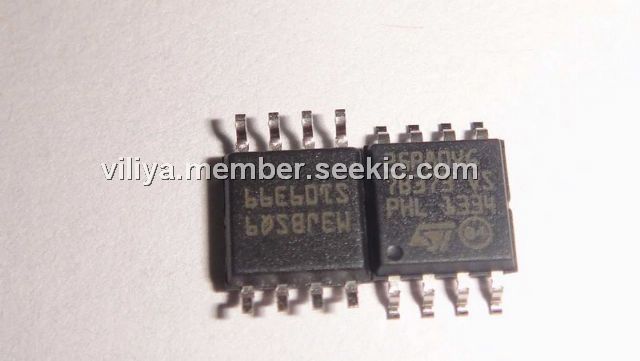

M25P80-VMW6G
M25P80-VMW6G

IC FLASH 8MBIT 75MHZ 8SOIC
Data Sheet
0-1800: $0.46
