Product Summary

The BC817-25 is an NPN transistor in a SOT23 plastic package.

Parametrics

BC817-25 absolute maximum ratings: (1)collector-base voltage: 50 V; (2)collector-emitter voltage: 45 V; (3)emitter-base voltage: 5 V; (4)collector current (DC): 500 mA; (5)peak collector current: 1 A; (6)peak base current: 200 mA; (7)total power dissipation: 250 mW; (8)storage temperature: -65 +150 ℃; (9)junction temperature: +150 ℃; (10)operating ambient temperature: -65 +150 ℃.

Features

BC817-25 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

Diagrams

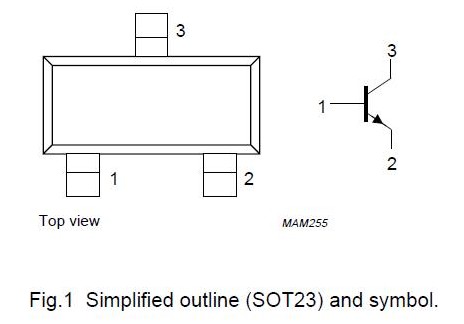

BC817-25 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC817-25
BC817-25
Taiwan Semiconductor
Transistors Bipolar (BJT) Transistor 300mW
Data Sheet
0-3000: $0.02
3000-6000: $0.02
BC817-25 /T3
BC817-25 /T3
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-13
Data Sheet
Negotiable
BC817-25,215
BC817-25,215
NXP Semiconductors
Transistors Bipolar (BJT) NPN GP 500 45V
Data Sheet
0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
BC817-25,235
BC817-25,235
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-13
Data Sheet
0-1: $0.08
1-25: $0.07
25-100: $0.05
100-250: $0.03
BC817-25-7
BC817-25-7
Diodes Inc.
Transistors Bipolar (BJT) NPN BIPOLAR
Data Sheet
Negotiable
BC817-25-7-F
BC817-25-7-F
Diodes Inc.
Transistors Bipolar (BJT) NPN BIPOLAR
Data Sheet
0-1: $0.23
1-10: $0.15
10-100: $0.07
100-250: $0.05
BC817-25E6327
BC817-25E6327
Infineon Technologies
Transistors Bipolar (BJT) NPN 45 V 500 mA
Data Sheet
Negotiable
BC817-25LT1
BC817-25LT1
ON Semiconductor
Transistors Bipolar (BJT) 500mA 50V NPN
Data Sheet
Negotiable
