Product Summary

The EEFUE0J151R is an aluminum electrolytic capacitor.

Parametrics

EEFUE0J151R specifications: (1)Category Temp.Range: -40 to 105℃; (2)Rated W.V.Range: 2 to 8V.DC; (3)Nominal Cap.Range: 100 to 470μF; (4)Capacitance Tolerance: ±20%; (5)DC Leakage Current: I ≦ 0.06 CV 2minutes(2 to 4V.DC); I ≦ 0.04CV or 3μA 2minutes(6.3 to 16V.DC) (Whichever is greater); (6)Surge Voltage: Rated Working Voltage × 1.25 (15 to 35℃); (7)tan δ: ≦ 0.10(120Hz/ +20℃).

Features

EEFUE0J151R features: (1)Low ESR; (2)Excellent Noise-absorbent Characteristics.

Diagrams

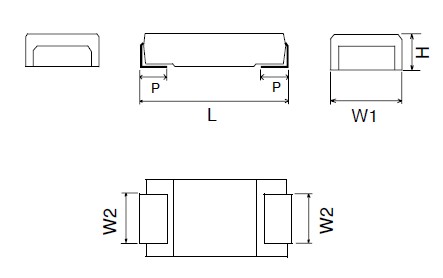

EEFUE0J151R dimensions
