Product Summary

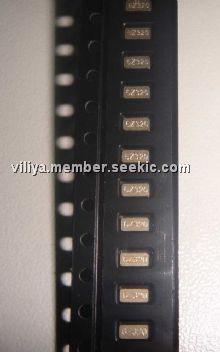

The ABS07-32.768KHZ-T is a 32.768 kHz SMD low profile crystal for wide range communication/measuring equipment.
Parametrics
ABS07-32.768KHZ-T absolute maximum ratings: (1)Frequency: 32.768 kHz; (2)Operating Temperature: -40 to +85 ℃; (3)Storage Temperature: -55 to +125℃; (4)Frequency Tolerance @+25℃: -20 to +20 ppm; (5)Temperature Coefficient:-0.040 min, -0.034 typ,-0.028 max ppm/T2; (6)Turn-over temperature: +20min, +25 typ, +30max ℃; (7)Equivalent series resistance (R1): 70 kΩ; (8)Shunt capacitance (C0): 1.50 pF; (9)Load capacitance (CL): 12.5 pF; (10)Drive Level: 0.5 typ, 1.0 max μW; (11)Q value: 13000 min, 30000 typ; (12)Insulation Resistance: 500 MΩ.
Features
ABS07-32.768KHZ-T features: (1)Low frequency in small size SMD; (2)0.9mm height ideal for high density circuit boards; (3)Seam sealed ceramic package offers excellent environmental & heat resistance; (4)Extended temperature -40 to +85℃ for industrial applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

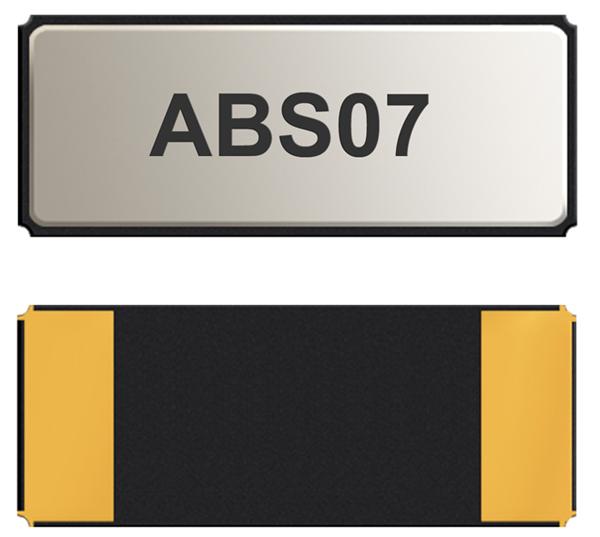

 ABS07-32.768KHZ-T |
ABRACON |
Crystals 32.768KHz 12.5pf 3.2 x 1.5 x 0.9mm |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
ABS05-32.768KHZ-9-T |
ABRACON |
Crystals 32.768KHz 9.0pF 20ppm -40C +85C |
Data Sheet |
|
|
||||||||||||
|
ABS05-32.768KHZ-T |
ABRACON |
Crystals 32.768KHz 12.5pF 20ppm -40C +85C |
Data Sheet |
|
|
||||||||||||
 |
ABS06-32.768KHz-1-9-T |
ABRACON |
Crystals 32.768KHz 9pF 10ppm -40C +85C |
Data Sheet |
|
|
||||||||||||
|
ABS06-32.768KHz-1-T |
ABRACON |
Crystals 32.768KHz 12.5pF 10ppm -40C +85C |
Data Sheet |
|
|
||||||||||||
|
ABS06-32.768KHZ-9-1-T |
ABRACON |
Crystals 32.768KHz 9pF 20ppm -40 C+85C |
Data Sheet |
|
|
||||||||||||
 |
ABS06-32.768KHZ-9-T |
|
CRYSTAL 32.768 KHZ 9.0 PF SMD |
Data Sheet |
|
|
||||||||||||
