Product Summary
The SDM20U40-7 is a surface mount schottky barrier diode.
Parametrics
SDM20U40-7 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 40V; (2)Working Peak Reverse Voltage, VRRM: 40V; (3)DC Blocking Voltage, VR: 40 V; (4)RMS Reverse Voltage VR(RMS): 28 V; (5)Forward Continuous Current (Note 2) IFM: 250 mA; (6)Non-Repetitive Peak Forward Surge Current, IFSM: 1.0 A; (7)Operating and Storage Temperature Range Tj, TSTG: -65 to +125℃.
Features
SDM20U40-7 features: (1)Low Forward Voltage Drop; (2)Guard Ring Construction for Transient Protection; (3)Negligible Reverse Recovery Time; (4)Low Reverse Capacitance; (5)Ultra-Small Surface Mount Package; (6)Lead Free By Design/RoHS Compliant (Note 1); (7)"Green" Device, Note 3 and 4; (8)Qualified to AEC-Q101 Standards for High Reliability.

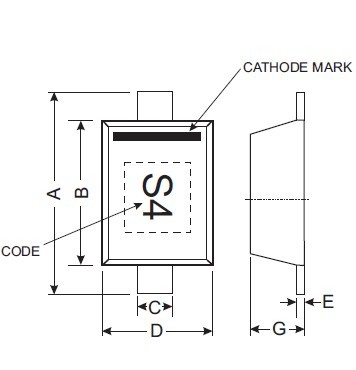

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SDM20U40-7 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 40V 150mW |
Data Sheet |
|
|
||||||||||||
|
SDM20U40-7-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 40V 150mW |
Data Sheet |
Negotiable |
|
||||||||||||
