The MAX931CSA+T single, dual, and quad micropower, low-voltage comparator pluses an on-board 2% accurate reference featuring the lowest power consumption available. The MAX931CSA+T draws less than 4μA supply current over temperature, and includes an internal 1.182V ±2% voltage reference, programmable hysteresis, and TTL/CMOS outputs that sink and source current.
Parametrics
MAX931CSA+T absolute maximum ratings: (1)V+ to V-, V+ to GND, GND to V-: -0.3V, +12V; (2)Inputs Current, IN_+, IN_-, HYST: 20mA; (3)Voltage, IN_+, IN_-, HYST: (V+ + 0.3V) to (V- – 0.3V); (4)Outputs Current, REF: 20mA; (5)Current, OUT_: 50mA; (6)Voltage, REF: (V+ + 0.3V) to (V- – 0.3V); (7)Voltage, OUT_ (MAX931/934): (V+ + 0.3V) to (GND – 0.3V); (8)OUT_ Short-Circuit Duration (V+ ≤ 5.5V): Continuous; (9)8-Pin Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; (10)8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (11)8-Pin μMAX (derate 4.1mW/℃ above +70℃): 330mW; (12)16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (13)16-Pin SO (derate 8.70mW/℃ above +70℃): 696mW; (14)Operating Temperature Ranges : 0 to +70℃; (15)Storage Temperature Range: -65 to +150℃; (16)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX931CSA+T features: (1)Ultra-Low 4μA Max Quiescent Current Over Extended Temp. Range (MAX931); (2)Power Supplies: Single +2.5V to +11V, Dual ±1.25V to ±5.5V; (3)Input Voltage Range Includes Negative Supply; (4)Internal 1.182V ±2% Bandgap Reference; (5)Adjustable Hysteresis; (6)TTL-/CMOS-Compatible Outputs; (7)12μs Propagation Delay (10mV Overdrive); (8)No Switching Crowbar Current; (9)40mA Continuous Source Current; (10)Available in Space-Saving μMAX Package.

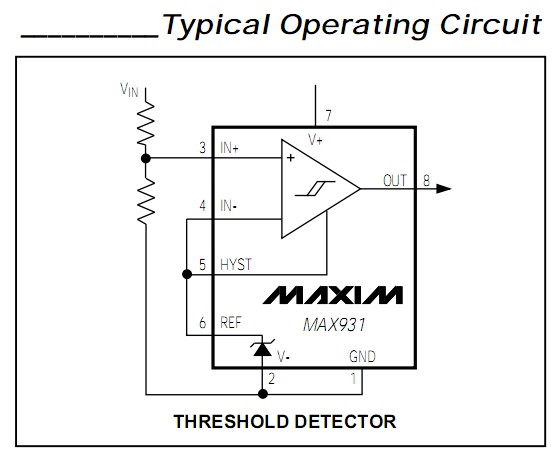

Diagrams
